Step 3: Add Kubernetes and site configuration

This page layers Kubernetes and your site configuration on top of the base image from Step 2, with every package coming from the same registry, and pushes the result as the edge image nodes will install.

Make targets: make rpm builds and uploads the site configuration package, make image builds the edge image, and make push pushes it. The Containerfile is image/Containerfile.

Why RKE2

The edge image is a normal Containerfile that starts FROM the base in Artifact Keeper. For Kubernetes the proof of concept uses RKE2 over k3s for one practical reason: RKE2 ships real EL10 RPMs on rpm.rancher.io, both rke2-server and rke2-selinux, and k3s has no RPM at all. With RPMs, the Kubernetes distribution flows through the same RPM proxy type as the operating system, which is the whole point of this exercise. The registry proxies the stable/1.36 tree, which is the version the RKE2 stable channel pointed at when the proof of concept was built.

Tags

Tags follow one rule: rocky-edge:<Rocky minor>-<site-config release>. So 10.2-4 means Rocky 10.2 plus edge-site-config release 4. You build two releases of the site configuration so that there is something to ship on day 2. The ones you will see in this walkthrough are 3 and 4. Releases 1 and 2 were an unsigned dry run, and they stay in the registry for a reason explained in Step 6.

The edge Containerfile

image/Containerfile (abridged)

ARG BASE_IMAGE=localhost:30080/oci-bootc/rocky-bootc-base:10
FROM ${BASE_IMAGE}

COPY build.repo /tmp/build-repos/build.repo
COPY edge.repo /tmp/edge.repo

# Layer 1: OS additions + RKE2. Unchanged across site-config releases.
RUN set -eux; \
    rm -f /etc/yum.repos.d/*.repo; \
    install -m 0644 /tmp/edge.repo /etc/yum.repos.d/edge.repo; \
    kver="$(rpm -q --qf '%{VERSION}-%{RELEASE}' kernel)"; \
    dnf -y --setopt=reposdir=/tmp/build-repos --setopt=install_weak_deps=False install \
        NetworkManager openssh-server bubblewrap "kernel-modules-extra-${kver}" rke2-server rke2-selinux; \
    systemctl enable NetworkManager.service sshd.service rke2-server.service; \
    rm -rf /run/k3s; \
    dnf clean all; rm -rf /tmp/edge.repo /var/cache/dnf /var/lib/dnf /var/log/dnf*.log

# Layer 2: the site configuration RPM (the only thing that changes on day 2).
ARG SITE_RELEASE=1
ARG SITE_VERSION=1.0
RUN set -eux; \
    dnf -y --setopt=reposdir=/tmp/build-repos --setopt=install_weak_deps=False install \
        "edge-site-config-${SITE_VERSION}-${SITE_RELEASE}.el10"; \
    systemctl enable edge-site-manifests.service; \
    dnf clean all; rm -rf /tmp/build-repos /var/cache/dnf /var/lib/dnf /var/log/dnf*.log

# /opt -> var/opt, so RKE2's network plugin can write /opt/cni at runtime.
RUN set -eux; \
    test -z "$(ls -A /opt)"; \
    rm -rf /opt; ln -s var/opt /opt

# Kernel arguments, tmpfiles.d entries, and (from Step 6) the signature policy and key.
COPY rootfs/ /

# Fail the build if any repository or key URL is not Artifact Keeper, or gpgcheck=0.
RUN set -eu; \
    bad="$(grep -rhE '^[[:space:]]*(baseurl|mirrorlist|metalink|gpgkey)[[:space:]]*=' /etc/yum.repos.d/ \
           | sed 's/^[^=]*=//' | tr ' ,' '\n\n' | grep -E '^[a-z]+://' \
           | grep -v -e ':30080/' -e '^file:///etc/pki/rpm-gpg/' || true)"; \
    if grep -rqE '^gpgcheck[[:space:]]*=[[:space:]]*0' /etc/yum.repos.d/; then echo "gpgcheck=0 found" >&2; exit 1; fi; \
    if [ -n "$bad" ]; then echo "non-Artifact-Keeper repo URL(s): $bad" >&2; exit 1; fi

RUN bootc container lint --fatal-warnings

image/build.sh passes SITE_RELEASE=3 and SITE_RELEASE=4 to build the two releases. Three things in here are on purpose:

• Two views of the same registry. The build runs with build.repo, where the host is host.containers.internal:30080, but the image ships edge.repo, where the host is 10.0.2.2:30080, which is the address a node sees on the test network (QEMU's user-mode networking). Same repositories, different hostname. The architecture page explains why this matters once signatures come into the picture.
• The repository check is a build gate. The base image carries Rocky's stock rocky*.repo files with mirrorlist URLs. The first RUN deletes them, and the gate near the end greps for any baseurl, mirrorlist, metalink or gpgkey URL that does not point at Artifact Keeper. If someone adds a stray upstream URL later, the build fails instead of quietly pulling from the internet. The gate also fails on gpgcheck=0, which Step 6 relies on.
• Layer order is a day-2 optimization. The first version of this image installed RKE2 and the site RPM in one RUN, so bumping the site configuration changed a 72 MB layer. Split in two, a site configuration release changes three small layers that add up to about 8 MB. That is the download every edge node pays for a configuration change, so it is worth getting right.

Two smaller fixes are in the image build notes: pinning kernel-modules-extra to the base kernel, and declaring RKE2's /var directories in tmpfiles.d so that bootc container lint passes with warnings treated as errors.

Image-mode lesson: a read-only /opt

This one only shows up on a booted node. The first install came up with RKE2 active and every pod stuck in Pending. The cause was canal (RKE2's default network plugin) failing with mkdir /opt/cni: read-only file system. The RESF base keeps /opt on the read-only image on purpose, and the recipe points /usr/local at /var/usrlocal but leaves /opt alone. No RKE2 package ships anything under /opt; only the network plugin writes there, and only at runtime. Neither podman run nor bootc container lint can catch this, because nothing is read-only inside a container build.

The fix is the classic ostree layout: the /opt symlink highlighted above, plus a tmpfiles.d entry for /var/opt/cni/bin. The image build checks for that symlink in its smoke test, so it cannot regress without someone noticing. The symptom and fix are also in Troubleshooting.

The site configuration RPM

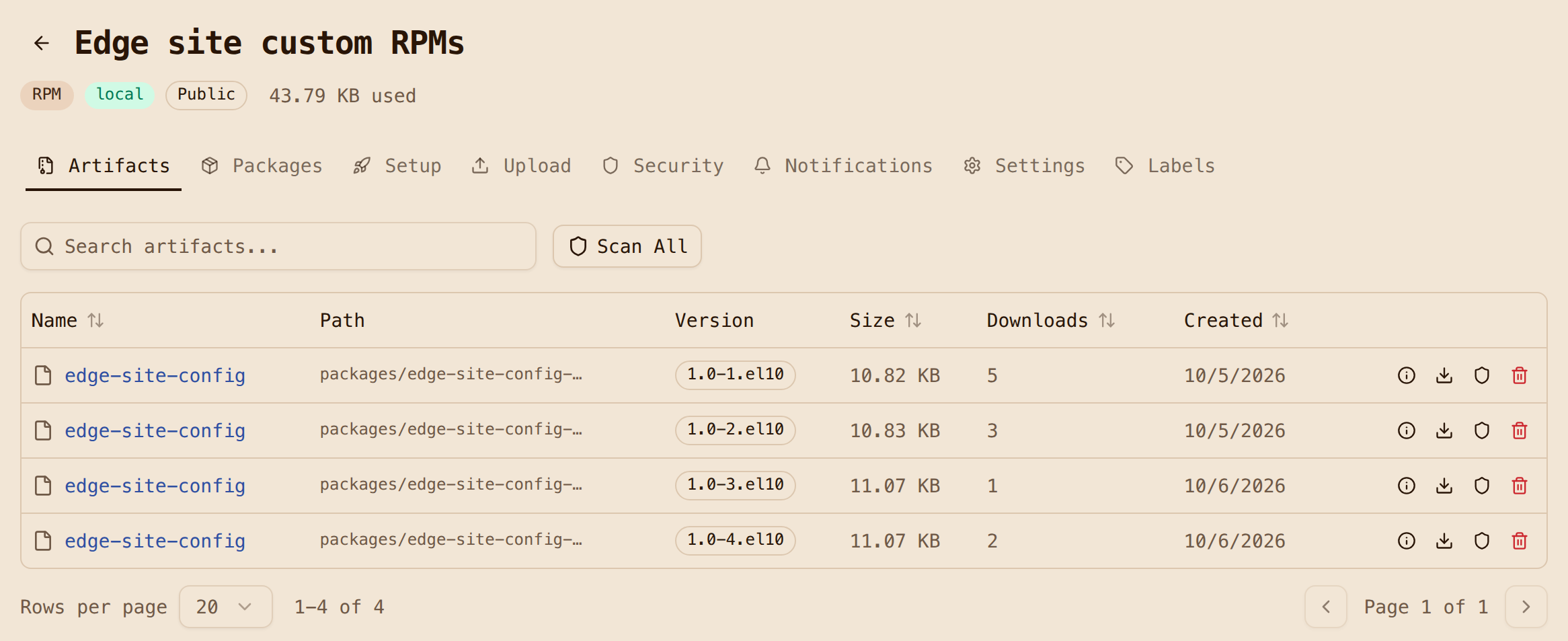

The edge-site-config RPM itself is small, which is how site configuration should be. It carries RKE2's config.yaml and registries.yaml, a MOTD that shows the package release so you can see day 2 land, an insecure-registry drop-in for the plain-HTTP registry, and a demo nginx Deployment that gets seeded into RKE2's auto-deploy directory on every boot. Its full contents are on the Architecture page, and the sources are in rpms/edge-site-config/.

The registries.yaml is the piece that ties the workloads back to the registry. Artifact Keeper serves its Docker Hub proxy under a path prefix, and containerd mirrors are host-level, so RKE2's rewrite adds the prefix:

/etc/rancher/rke2/registries.yaml

mirrors:
  docker.io:
    endpoint:
      - "http://10.0.2.2:30080"
    rewrite:
      "^(.*)$": "oci-dockerhub-proxy/$1"

With this, docker.io/library/nginx:alpine becomes a request for /v2/oci-dockerhub-proxy/library/nginx/manifests/alpine. Because it mirrors all of docker.io, RKE2's own system images such as rancher/rke2-runtime come through the registry as well. containerd keeps the public endpoint as a fallback, so a real site should also block egress.

Building the RPM is rpmbuild in a rockylinux:10 container (pulled through the quay.io proxy again, with dnf pointed only at Artifact Keeper again), and it takes about five seconds per release. Uploading is one PUT per file, as shown in Step 1.

Uploads are write-once

If you re-upload a file name that already exists, Artifact Keeper returns HTTP 409 and keeps the stored file, even if your local bytes are different. Treat each name-version-release as immutable and bump the release. That is good practice anyway.

Build, push and tag

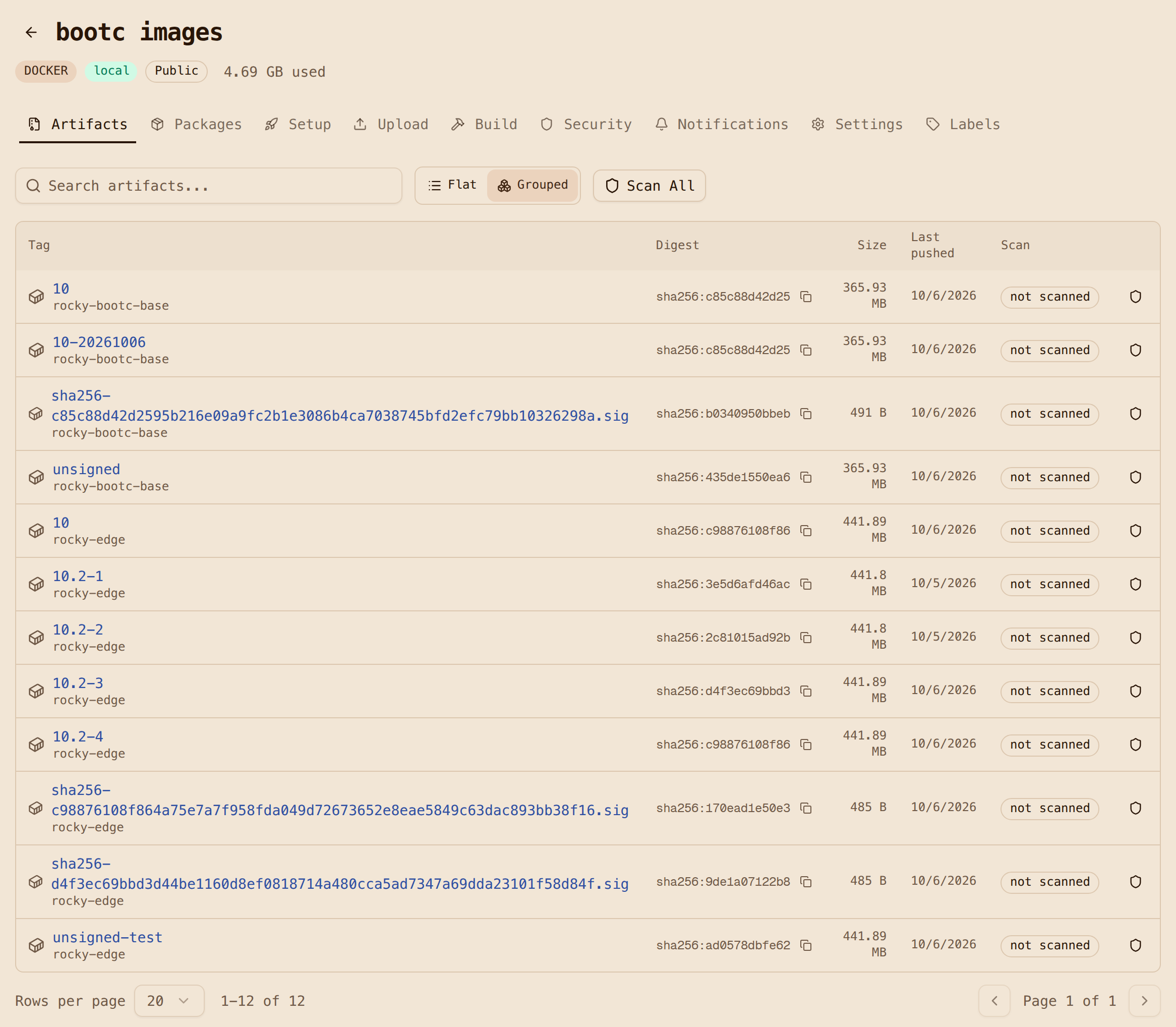

The final numbers for the edge image are 76 layers and 463 MB compressed, with a dozen packages added on top of the base. The edge build takes under half a minute cold and 8 seconds for a site-configuration bump. Pushes take a few seconds, because the 68 base layers are already in oci-bootc. make push pushes rocky-edge:10.2-3 and rocky-edge:10.2-4 as immutable tags and points the floating rocky-edge:10 at the first one with a registry-side skopeo copy. Promotion is just moving that tag, which is the subject of Step 5.

make push re-points :10

make push always moves :10 to REL (default 3). Running it after a day-2 promote moves the fleet's tag back. Use make promote REL=N to move the tag deliberately.

Next: Step 4: Install on bare metal with a kickstart.
